The 200G QSFP56 portfolio is using the latest generation of DSPs offering breakout functionality, multi-rate operation and lowest power consumption in the market. IEEE compliant 200G SR4 and LR4 interfaces are available.
LQP200-SR4 are using 4x50G PAM4 channels to achieve a 200GE connectivity suitable for switch interconnectivity, operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm or 4 channels 850nm wavelength. The electrical interface of the module is compliant with the 200GAUI-4 interface as defined by IEEE 802.3bs.

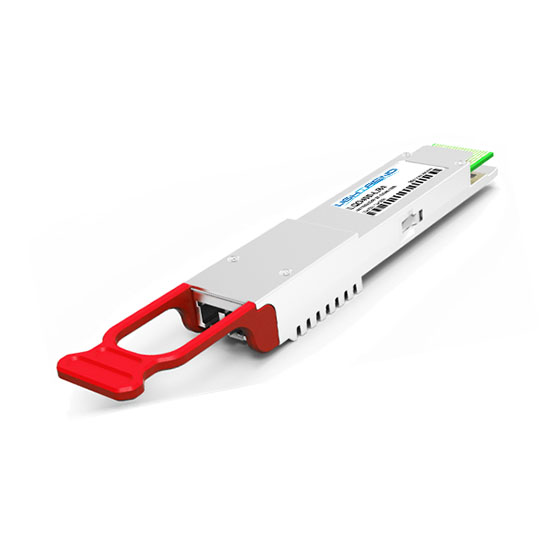

LQD200-LR4 , QSFP-DD 4x50G are having 8x25G optical lanes operating at NRZ encoding. They are compliant with the QSFP-DD MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP-DD MSA.
LQD200-ER4 , QSFP-DD 4x50G are having 8x25G optical lanes operating at NRZ encoding. They are compliant with the QSFP-DD MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP-DD MSA.
Part No. |
Description |
Data Rate |
Wavelength |
Distance |
Connector |
Temp |
Download |
LQP200-SR4 |
QSFP56 SR4 |
200Gbps |
850nm |
100m |
MPO |
C |
|
LQD200-LR4 |
QSFP-DD LR4 |
200Gbps |
LAN-WDM |
10KM |
LC |
C |
|
LQD200-ER4 |
QSFP-DD ER4 |
200Gbps |
LAN-WDM |
40KM |
LC |
C |
|
For the latest specification and samples, please contact us [email protected]
